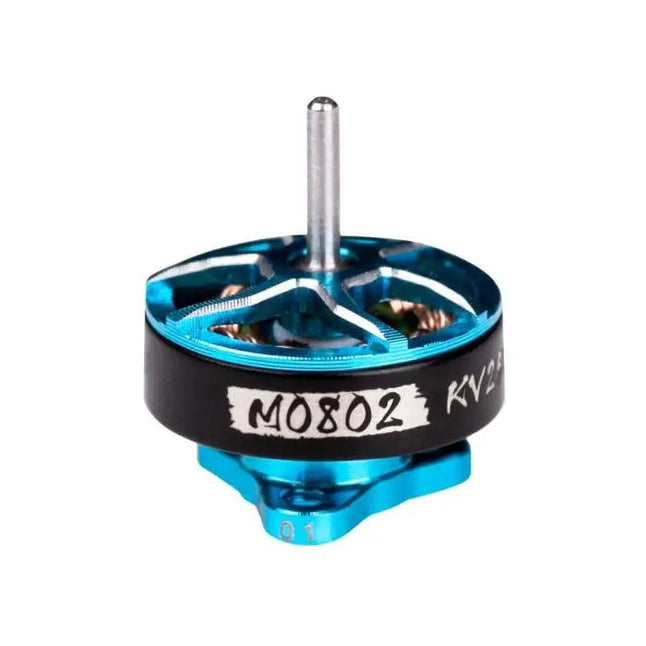

T-Motor M0802 Micro Motor - 22000KV/25000KV

The T-Motor M0802 Micro Motor - 25000KV is the lighter version of the F0802. The M0802 is part of the Micro Power Series and packs a punch with its small and light design!

Note: The 22000KV Motor is all blue, and the 25000KV motor is black and blue.

• High-quality materials
• 33mm motor wire
• Compact design
• JST-1.25 plugs
• Light Motor

22000KV

• Mounting pattern: ~6mm, 3x M1.4
• Motor Dimensions: Φ10.6x14.7mm
• Wire Dimensions: JST-1.25, 33.5mm
• Stator Dimensions: Φ8x2mm
• Weight: 2.04g (with wire)
• Shaft diameter: 1mm
• Configuration: 9N12P
• Input voltage: 1S
• Color: Blue
• KV: 22000

25000KV

• Wire Dimensions: JST-1.25, 33.5mm
• Motor Dimensions: Φ10.6x14.7mm
• Mounting Pattern: Φ6mm, 3x M1.4
• Max Continuous Current: 4.82A
• Stator Dimensions: Φ8x2mm
• Internal Resistance: 180mΩ
• Weight: 1.93g (w/ wire)
• Shaft Diameter: 1mm
• Configuration: 9N12P
• Color: Black and Blue
• Input Voltage: 1S
• Kv: 25000Kv

• 1x T-Motor M0802 Micro Motor w/ JST Connector (22000KV or 25000KV)
